Z31 Power Transistor and Circuit

The Ignition Signal from the E.C.C.S control unit is amplified by the power transistor, which connects and disconnects the coil primary circuit to induce the proper high voltage in the secondary circuit.

Warning: do this work at your own risk. We are not responsible for any problems or damage caused by your own work.

1984 vs. 1985–89 Power Transistors

Model yearsConnectorGround
19842 wiresThrough the transistor's mounting (case to body)
1985–893 wiresSeparate black ground wire in the harness

On a 1984, the power transistor has no ground wire. It grounds through its mounting, so a loose, rusty or painted mounting point can cause a weak spark or no spark at all. Clean the mounting surface to bare metal and make sure the bolts are tight before you replace the transistor.

Common Problems

  • Loss of spark
  • On 1984 models, a poor ground at the transistor's mounting

Troubleshooting

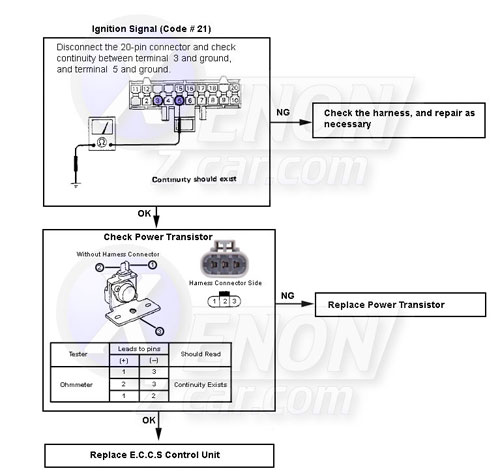

Below you will see how to troubleshoot this circuit.

Click to enlarge (Image from Nissan Motor Company Factory Service Manual)

Upgrade for the Power Transistor

As our Z31s get older and the supply of Power transistors diminishes, a replacement is needed. The newer PRW-2 transistor, found on several distributor-equipped Nissans, can be easily swapped in to replace the stock unit.

1984 models: the PRW-2 is a 3-wire unit with its own ground wire. A 1984 harness has only 2 wires because the original transistor grounds through its mounting. To upgrade, switch to the later-style connector and add a ground wire from the PRW-2's black ground lead to the body. Without it, the PRW-2 won't fire.

Read the full PRW-2 upgrade procedure
